Used Cat Excavator Powerful Reliable & Feature Rich Your Ultimate Earthmoving Solution

Name: Used Cat Excavator Powerful Reliable & Feature Rich Your Ultimate Earthmoving Solution
Brand: Shanghai Huiyu Construction Machinery Co., Ltd.
SKU: Cat D7G2
Price: 3,500.00 USD
Availability: InStock

Place of Origin	Japan
Brand Name	Caterpillar
Certification	ISO CE etc.
Model Number	Cat D7G2

Product Details

Model:

Cat® 3306 DITA

Flywheel Power:

202 Hp (150 KW)

Maximum Flywheel Power:

220 Hp (164 KW)

Displacement:

638 In³ (10.5 L)

Forward Gears:

3 (2.3–6.2 Mph / 3.9–9.9 Km/h)

Reverse Gears:

3 (2.8–7.9 Mph / 4.5–12.7 Km/h)

Operating Weight:

45,381 Lb (20,580 Kg)

Shipping Weight:

34,510 Lb (15,650 Kg)

Track Gauge:

77.99 In (1,981 Mm)

Height:

10.81 Ft (3,294 Mm)

Ground Contact Area:

4,708 In² (3.05 M²)

SU-Blade Capacity:

7.53 Yd³ (5.75 M³)

Fuel Tank:

110 Gal (US) (415 L)

Highlight:

Used Cat Excavator 150 kW

Used Cat Excavator 202hp

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiable

Packaging Details

20"/40" Container/Flat Rack/ Bulk Cargo / Ro-Ro Shipping for safety of your goods, professional, environmental and friendly packaging services will be provided for your selection.

Delivery Time

7 Days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

9999

Product Description

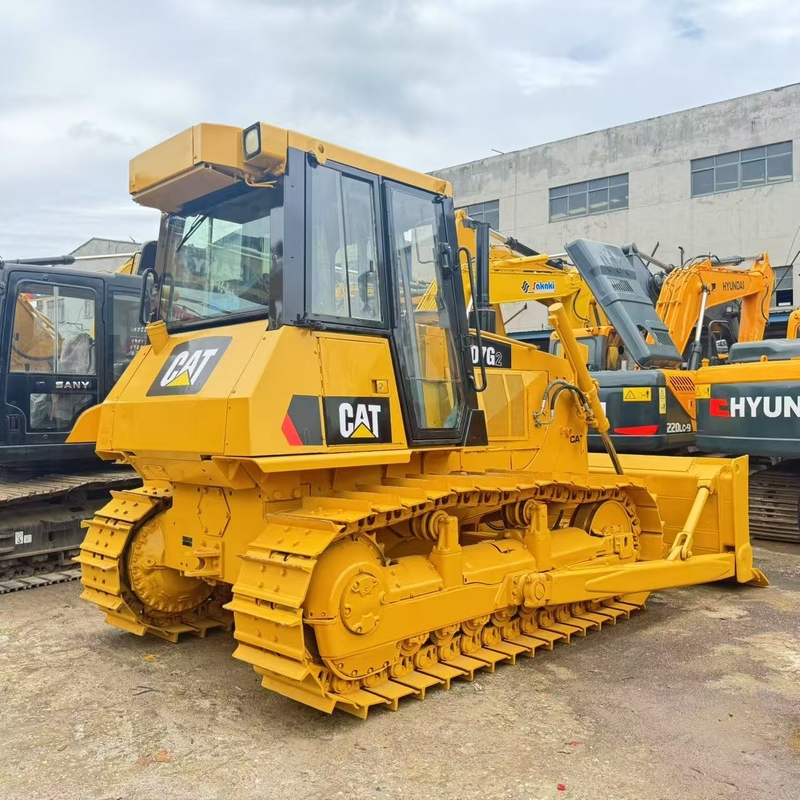

Product Description: The Used Cat D7G2 is a robust earthmoving machine that has been a staple in construction, mining, and various other heavy - duty industries. It is designed to handle the most challenging terrains and tasks with ease.

Features and Characteristics:

Powerful Engine: Equipped with the Cat 3306 DITA engine, it delivers 202 hp (150 kW) of flywheel power and a maximum of 220 hp (164 kW), ensuring high - performance operation even in tough conditions.
Efficient Transmission: Has 3 - speed forward and reverse gears, allowing for precise control in different work scenarios, with speeds ranging from 2.3 mph (3.9 km/h) to 7.9 mph (12.7 km/h).
Durable Undercarriage: Features a moderate - service single - grouser shoe type with options for different widths, providing stability and long - lasting performance on various surfaces.

Advantages:

Proven Reliability: Built with Caterpillar's renowned quality components, the D7G2 is known for its durability and ability to withstand continuous use.
Versatile Applications: Suitable for a wide range of tasks, from large - scale earthmoving in construction projects to material handling in mining operations.
Good Fuel Efficiency: Despite its power, it offers decent fuel economy, helping to keep operational costs down.

Parameter Table:

Category	Parameter	Value
Engine	Model	Cat® 3306 DITA
	Flywheel Power	202 hp (150 kW)
	Maximum Flywheel Power	220 hp (164 kW)
	Net Power (ISO 9249/SAE J1349/EU 80/1269)	202 hp (150 kW)
	Bore	4.75 in (121 mm)
	Stroke	6 in (152 mm)
	Displacement	638 in³ (10.5 L)
Transmission	Forward Gears	3 (Speeds: 2.3 mph / 3.9 km/h, 4 mph / 6.4 km/h, 6.2 mph / 9.9 km/h)
	Reverse Gears	3 (Speeds: 2.8 mph / 4.5 km/h, 4.9 mph / 7.8 km/h, 7.9 mph / 12.7 km/h)
Weights	Operating Weight	45381 lb (20580 kg)
	Shipping Weight	34510 lb (15650 kg)
Dimensions	Length - Track on Ground	107.09 in (2720 mm)
	Ground Clearance	13.74 in (349 mm)
	Track Gauge	77.99 in (1981 mm)
	Width - Without Blade	100.79 in (2560 mm)
	Height	10.81 ft (3294 mm)
	Overall Length - Basic Tractor - with Drawbar	13.78 ft (4.2 m)
Undercarriage	Shoe Type	Moderate Service (Single Grouser)
	Shoe Width	22 in (560 mm) (Optional: 20 in / 510 mm)
	Shoes / Side	38
	Grouser Height	2.7 in (70 mm)
	Ground Contact Area	4708 in² (3.05 m²)
	Ground Pressure	10.59 psi (73 kPa)
Blades	SU - Blade Capacity	7.53 yd³ (5.75 m³)
	S - Blade Capacity	5.5 yd³ (4.2 m³)
	A - Blade Capacity	3.8 yd³ (2.9 m³)
Ripper	Type	Fixed Parallelogram
	Number of Pockets	3
	Overall Beam Width	87 in (2210 mm)
	Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole	19 in (490 mm)
	Maximum Penetration	20 in (510 mm)
Service Refill Capacities	Fuel Tank	110 gal (US) (415 L)
	Cooling System	11.2 gal (US) (45.4 L)
	Engine Crankcase	7.3 gal (US) (27 L)
	Final Drive - Each	9 gal (US) (34 L)
	Hydraulic Tank	27 gal (US) (102 L)
	Transmission - Bevel Gear and Steering Clutch Compartments - Torque Converter	18.5 gal (US) (70 L)

Used Cat Excavator Powerful Reliable & Feature Rich Your Ultimate Earthmoving Solution 0

Used Cat Excavator Powerful Reliable & Feature Rich Your Ultimate Earthmoving Solution 1

Used Cat Excavator Powerful Reliable & Feature Rich Your Ultimate Earthmoving Solution 2
