Specification

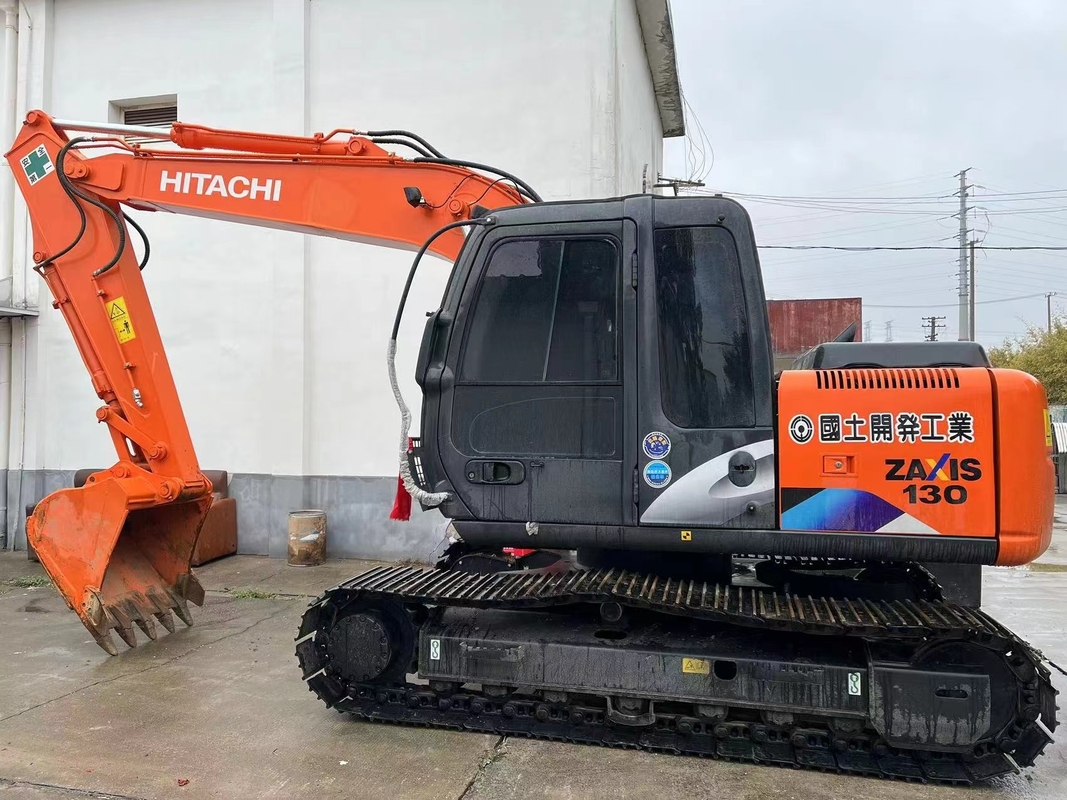

The Hitachi 130 (taking ZX130-5A as a typical model) has an operating weight of approximately 13,200 kg. Its overall transport length is 8,550 mm, width 2,590 mm, and height 2,870 mm. The track gauge is 2,100 mm, with a track shoe width of 600 mm and a ground clearance of 440 mm.
Equipped with a 4-cylinder Isuzu engine, it delivers a rated power of 74 kW at 2,000 rpm. The maximum digging radius reaches 8,380 mm, and the maximum digging depth is 5,500 mm. It boasts a bucket digging force of 95 kN and a travel speed of 3.2/5.5 km/h, with a climbing ability of 70%.
The fuel tank holds 250 L, the hydraulic oil tank 100 L, and the engine oil capacity is 18 L. The standard bucket capacity ranges from 0.5 to 0.8 m³, suitable for medium-duty excavation tasks.
Engineering
The upper frame adopts a box-type welded structure, enhancing torsional strength. The boom and arm are reinforced with high-tensile steel plates, reducing weight while improving load-bearing capacity. Key pivot points use wear-resistant bushings to extend service life.
The load-sensing hydraulic system optimizes oil flow distribution, minimizing energy loss. Dual variable displacement pumps ensure smooth multi-action operations (e.g., simultaneous boom lifting and bucket dumping) without power lag.
The engine integrates a common-rail fuel injection system and a cooled EGR system, complying with emission standards while improving fuel efficiency by up to 10% compared to previous models. An automatic idle function reduces fuel consumption during idling.
Design
The spacious cab features a suspension seat with adjustable lumbar support, reducing operator fatigue. The digital display panel provides real-time data (fuel level, engine temperature) and maintenance alerts. Controls are intuitively arranged, with a joystick for precise operation.
- Safety & Maintenance Design
The cab meets ROPS/FOPS standards, with reinforced glass for impact resistance. Maintenance points (e.g., oil filters, grease nipples) are centrally located for easy access. A self-diagnostic system detects faults and displays error codes for quick troubleshooting.
Four working modes (Standard, Eco, Heavy, and Breaker) adapt to different tasks. The auto-deceleration function lowers engine speed when controls are idle, saving fuel. The undercarriage’s track links are designed to resist mud accumulation, suitable for muddy or uneven terrains.
|
Value Category
|
Items (Related to Hitachi 130 Excavator)
|
|
Performance & Efficiency
|
- 74 kW rated engine power for strong performance- 95 kN bucket digging force for efficient excavation- Load-sensing hydraulic system reducing energy loss- Up to 10% improved fuel efficiency with common-rail injection
|
|
Durability & Strength
|
- Box-type welded upper frame enhancing torsional strength- Boom and arm with high-tensile steel plates- Wear-resistant bushings at key pivot points- ROPS/FOPS compliant cab for structural safety
|
|
Operational Versatility
|
- Four working modes (Standard, Eco, Heavy, Breaker) for diverse tasks- Maximum digging radius of 8,380 mm and depth of 5,500 mm- 70% climbing ability suitable for rough terrains- 0.5-0.8 m³ bucket capacity for medium-duty work
|
|
User-Friendliness & Maintenance
|
- Spacious cab with suspension seat and adjustable lumbar support- Digital display panel with real-time data and alerts- Centrally located maintenance points for easy access- Self-diagnostic system with error codes for troubleshooting
|
|
Cost-Effectiveness
|
- Automatic idle and auto-deceleration functions reducing fuel consumption- Extended service life due to durable components- Efficient multi-action operations saving time on tasks
|
